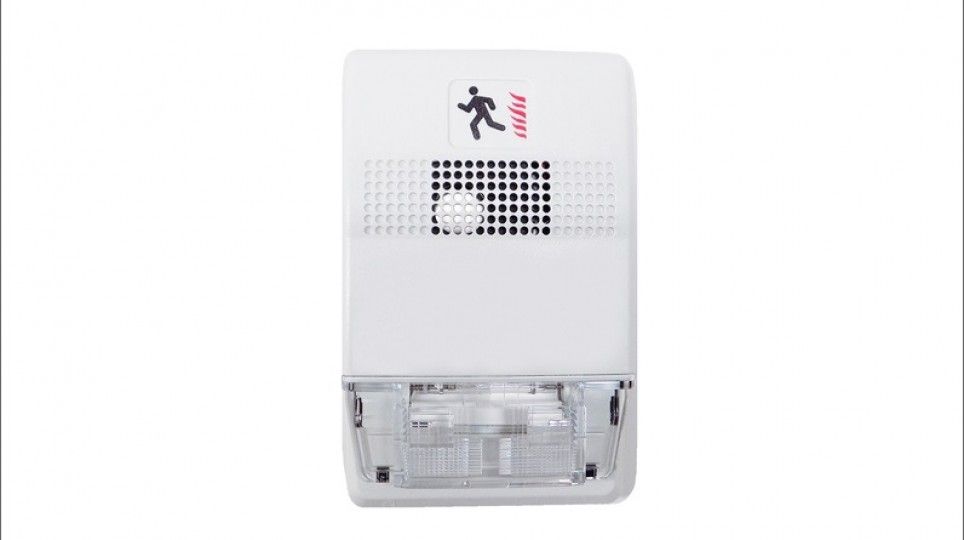

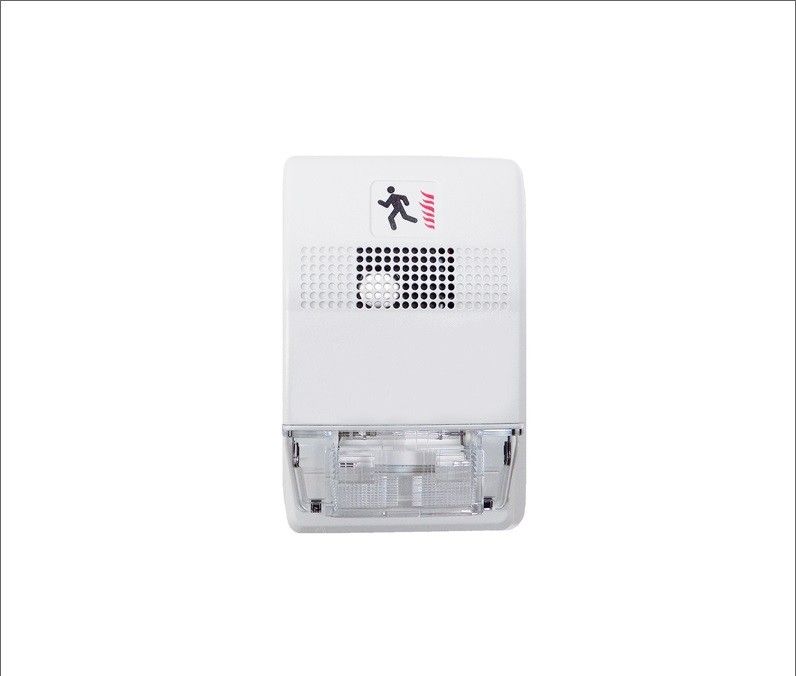

Temporal horn, hi/lo dB output - 24V, WHITE

طباعة
الماركة: إي أس تي مشاهدة المنتجات
SKU: G1-HD
Hits: 5655
Price only for authorised

G1-HD series temporal-tone horns: non-coded, filtered 16-33 Vdc or unfiltered 16-33 Vdc FWR (or coded when horn set to steady tone)



Standard Features:



  •  Unique low-profile design – The most compact UL-1971/ULC-S526 listed strobe available – Ultra-slim – protrudes less than one inch – Attractive appearance – No visible mounting screws
  •  Four field-configurable options in one device – Select 15, 30, 75, or 110 cd strobe output – Select high (default) or low dB horn output – Select temporal (default) or steady horn output – Select public mode flash rate (default) or private mode temporal flash
  •  Fixed 15/75 cd model available
  •  ECS/MNS models available
  • Easy to install – Fits standard 1-gang electrical boxes – no trim plate needed – Optional trim plate accommodates oversized openings – Pre-assembled with captive hardware – #12 AWG terminals – ideal for long runs or existing wiring
  • Unparalleled performance – Industry’s most even light distribution – Meets tough synchronizing standards for strobes – Single microprocessor controls both horn and strobe – Independent horn control over a single pair of wires – Highly regulated in-rush current – Multiple frequency tone improves sound penetration – Field-programmable temporal strobe output option
