15/75 cd Bell/Strobe Plate

طباعة
القسم: اكسسوارات
الماركة: إي أس تي مشاهدة المنتجات
SKU: 403-7A-R
Hits: 5162
Price only for authorised

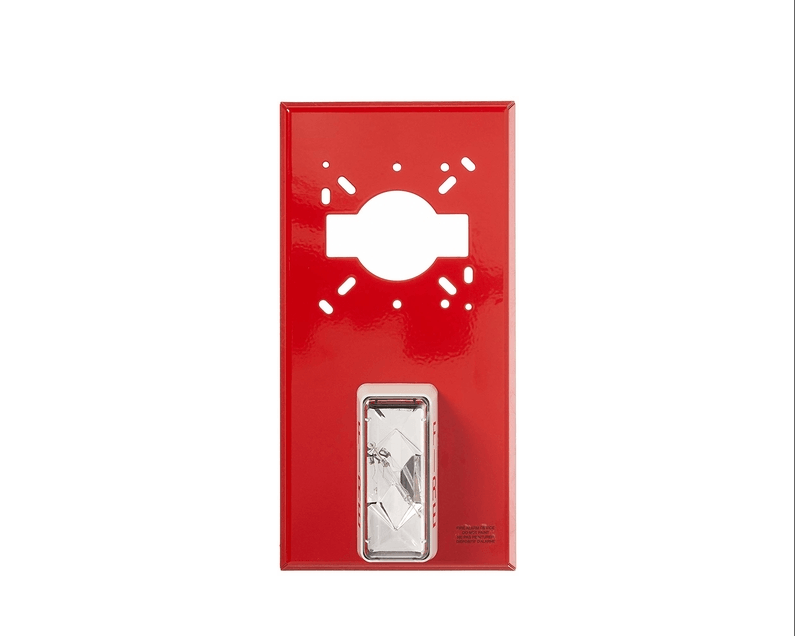

EDWARDS 403 Series Bell-Strobe Plates are specially designed for use with compatible life safety communication and control equipment to alert the hearing impaired of a life safety event. Strobes are available with 15 cd, 15/75 cd, 30 cd, and 110 cd effective flash intensity. They are fully compatible with Genesis signals



Standard Features:

  • Converts EDWARDS 439 model bells Ideal for renovation work; easily adapts to existing or new EDWARDS bells for conversion into Bell/Strobes. Mounts to North American one-gang, two-gang, octagon, and 4-inch square boxes.
  • UL 1971-listed synchronizing strobe 403 Series strobes synchronize to the latest UL 1971 requirements when used with an external control source.
  • Genesis-compatible All Genesis and Integrity strobes on the same circuit meet UL 1971 synchronization requirements when used with an external control module.
  • Approved for public and private mode applications UL 1971-listed as signaling devices for the hearing impaired and UL 1638-listed as protective visual signaling appliances.
  • Rugged steel plate Strong CRS plate with durable baked red epoxy polyester powder-coat finish.
  • Field changeable field markings Lens language or standard “FIRE” marking is easily changed with optional LKW series lens kits.
